Use the configurator to design your pefect Centurion Boat

General Specifications
Subtype | Fi23 |
---|---|
Length
| 23’ |
Beam
| 102” |
Draft
| 32” |
Weight
| 5300 lbs |
Weight on Trailer
| 6800 lbs |
Fuel Capacity
| 81 gal |
Seating Capacity
| 14 People |
Std Torque
| 409 ft/lb |
Max Torque
| 545 ft/lb |
BALLAST 4850LBS
With as many as seven precisely placed ballast locations that combine for the 4850-pounds of ballast, the industry’s largest factory ballast capacity in a 23-foot boat.
RAMFILL
Create pro level wakes or waves in as little as 90 second with available RAMFILL ballast.
OPTI-V HULL
With 20 degrees of dead-rise at the transom the Opti-V Hull displaces more water with less weight while preserving a great rough water ride.
Ambitious Design
With its wide bow and sleek sporty look, and skillfully integrated Maximus Tower, the Fi23 stands out immediately. Customize the tower with gel-coated tower shields and surround sound or upgrade it to the DropZone Auto Tower by Roswell and you have twenty-three feet of awesome that is your signature ride. The split screen HD touch screen dash incorporates easy functionality and an available rearview camera lets you keep an eye on the riders enjoying world class waves and wakes. With as many as seven precisely placed ballast locations that combine for the 4850-pounds of ballast, the Fi23 offers the industry’s largest factory ballast capacity in a 23-foot boat. QuickSurf Pro enables two-second surf wake transfer from left to right and when the surf system is disengaged the Opti-V Hull creates perfectly symmetrical wakes at wakeboarding speeds.
SUBFLOOR BALLAST
Centurion offers the largest sub-floor ballast standard that does not encroach on storage areas. The Fi23 has 2950 lbs. of subfloor ballast.
MARINE VINYL
Centurion’s Comfort Strong Marine Vinyl by Spradling offers double the top coat of any competitor at 17 mils thick.
QUIET RIDE
VIP construction, Patented Silent Stinger Wake Plate and GM Marine, create a perfect ride that is inside-voice quiet.

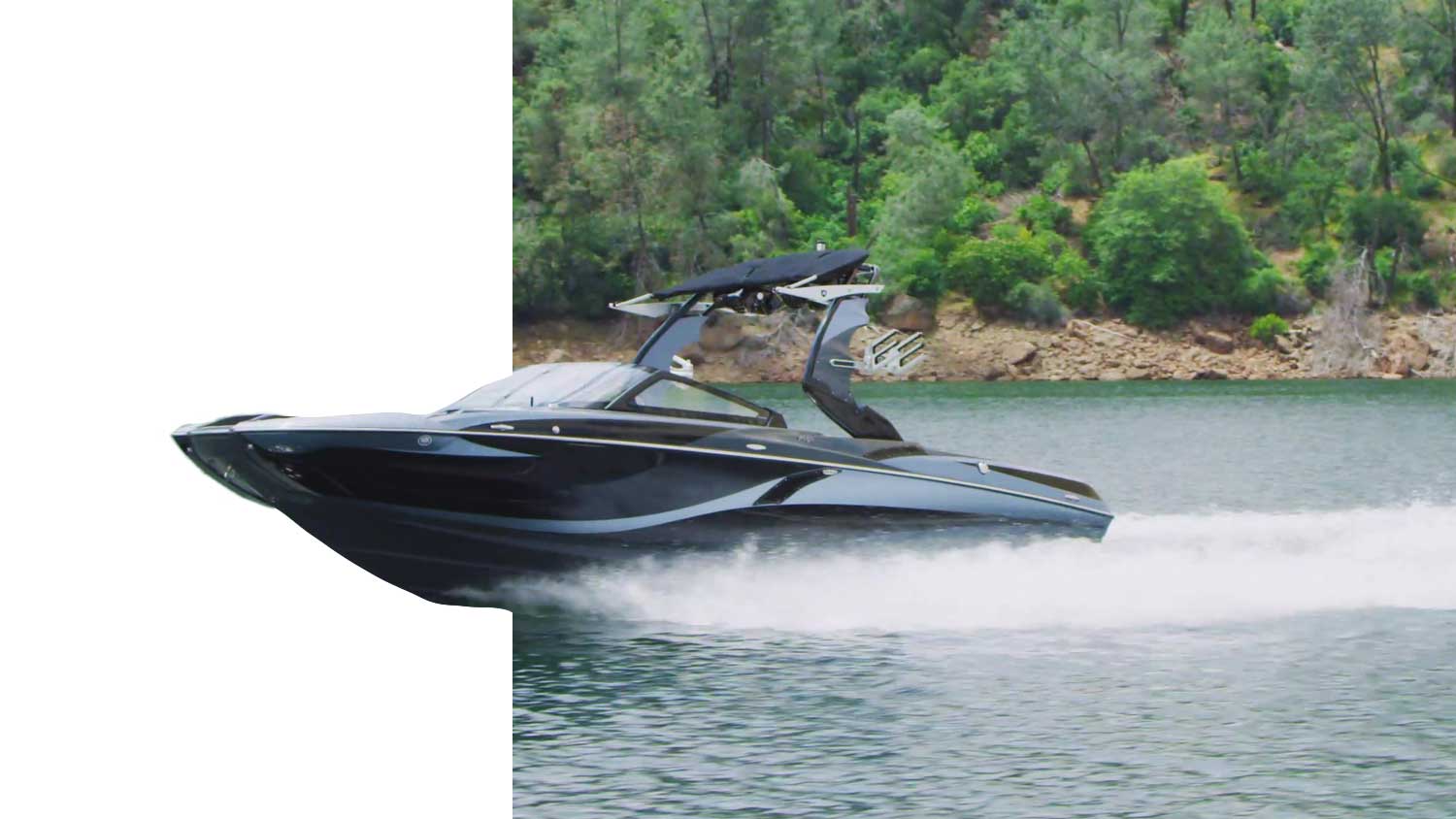

T h e 2 0 2 1
Fi23 W a l k t h r o u g h

Garage Specs
Subtype | Fi23 |
---|---|
Overall Length | 27’6” |
Length w/out Platform | 26’6” |
Length w/out Platform, Tongue Swung | 24’7” |
Trailer Width | 8’6” |
Height No Tower (measured to window) | 7’8” |
Height W/Battle Advanced Tower | 10'8" |
Height W/DropZone Tower | 11’5” |
Height W/Battle Advanced Tower Down | 8'4" |
Height W/DropZone Tower Down | 8’9” |
Height, 18” Wheel Package (add) | +1.5” height on above five items |
Fineline Industries LLC reserves the right to change model specifications, standard and optional equipment, color schemes and pricing at any time without notice or incurring obligations. It is the Dealer’s responsibility to adhere to all State and Local regulations and laws governing minimum requirements needed on each boat, such as trailer brakes, kill switches and other safety equipment.
Design Your Fi23
Fi23 Boat Specs
General Specifications Subtype Fi23 Length 23’ Beam 102” Draft 32” Weight 5300 lbs Weight on Trailer 6800 lbs Fuel Capacity 81 gal Seating Capacity 14 People Std Torque 409 ft/lb Max Torque 545 ft/lb General Specifications Subtype Fi23 Overall Length 27’6” Length w/out Platform 26’6” Length w/out Platform, Tongue Swung 24’7” Trailer Width 8’6” Height No Tower (measured to window) 7’8” Height W/Battle Advanced Tower 10'8" Height W/DropZone Tower 11’5” Height W/Battle Advanced Tower Down 8'4" Height W/DropZone Tower Down 8’9” Height, 18” Wheel Package (add) +1.5” height on above five items General Specifications Subtype Fi23 Total Available 4850 lbs Std Sub-bow Tank 450 lbs Std Sub-lounge Tanks 2500 lbs Optional Bow PNP 250 lbs Optional Rear PNP 1300 lbs Optional Transom PNP 350 lbs
